How to Use a Vastu Compass for Accurate 16-Zone Home Mapping

A compass reading may look simple, but a few degrees can change which directional sector contains an entrance, room or Vastu remedy. The important work is not merely finding North. It is taking a stable bearing and transferring that bearing to the floor plan without changing the reference midway.

In many Indian homes, directions are first checked when planning a pooja room, assessing an entrance or placing a direction-specific Vastu product. A professional physical compass can make this process more repeatable, especially when a phone compass gives changing readings. It should still be used with patience and clarity, because nearby metal, electrical systems and reinforced concrete can influence a magnetic needle.

What does a Vastu compass actually measure?

A magnetic compass responds to the Earth’s magnetic field and points toward magnetic North. The numbered dial allows the user to record a bearing from 0 to 360 degrees. North is read around 0 or 360 degrees, East around 90 degrees, South around 180 degrees and West around 270 degrees.

For Vastu work, that bearing becomes a directional reference. Once North is marked accurately, the same orientation can be transferred to a floor plan. The home can then be divided into eight broad directions or sixteen narrower sectors, depending on the level of analysis required.

Why 16-zone mapping is different from finding North

Finding North answers one question: how is the property oriented? Sixteen-zone mapping answers a more detailed question: within which 22.5-degree sector does a particular point fall?

A complete circle contains 360 degrees. Dividing it into sixteen equal sectors gives 22.5 degrees per sector. This produces the four cardinal directions, four diagonal directions and eight intermediate directions such as North-North-East, East-North-East and West-North-West.

This distinction matters near a boundary. A point at 70 degrees falls within East-North-East, while a point at 82 degrees falls within East. Both may casually be described as “toward the East,” but they occupy different sectors in a sixteen-zone map.

Before taking a reading

Decide what you are measuring

Do not mix home orientation, entrance facing and entrance position. They are related, but they are not identical. The direction in which a person faces while standing at the door is a bearing. The entrance zone, however, is determined by locating the door on the perimeter of the mapped plan in relation to the centre. The swing of the door leaf does not determine its Vastu zone.

Choose one North reference

A physical compass gives magnetic North. Architectural drawings are commonly referenced to geographic or true North. The angle between the two is called magnetic declination, and it changes with location and time. For basic home checks the difference may appear small, but it can matter when a point lies close to a sector boundary.

Before overlaying the zones, decide whether the plan will follow the raw magnetic reading or a true-North reference corrected for local declination. Different Vastu practitioners may follow different conventions. The safest rule is consistency: record the reference used and do not switch between magnetic North, a phone setting and a plan arrow during the same analysis.

Reduce nearby interference

Keep the compass away from steel door frames, large appliances, speakers, electrical panels, lifts, vehicles, magnetic phone cases and other strong magnetic or electrical influences. Remove a phone, smartwatch, keys and heavy metal objects from the hand holding the compass. In an apartment, structural reinforcement may still affect indoor readings, so verification is important.

How to take a reliable Vastu compass reading

1. Open the compass and identify the magnetic needle, degree markings and the direction line or sighting reference. Do not begin until you understand which mark represents the bearing being recorded.
2. Hold the compass flat and level. Tilting the body can restrict the needle and create an unstable reading.
3. Stand away from obvious metal and electrical sources. Use a clear reference line, such as the centreline of an entrance or a wall whose orientation you need to transfer to the plan.
4. Allow the needle to settle fully. Record the exact degree instead of writing only “East” or “North-East.”
5. Take at least three readings from the same position and orientation. If they remain close, note the median or consistent value rather than choosing the most convenient number.
6. Move a short distance while remaining parallel to the same reference line and repeat. A major change suggests local interference or a change in the way the compass is being held.
7. Write down the location, bearing, time and North convention used. This makes the mapping process traceable and easier to verify later.

How to transfer the compass reading to a floor plan

1. Use the most accurate floor plan available. A dimensioned or scaled plan is preferable to a rough hand sketch.
2. Identify the main enclosed footprint being analysed. Treatment of balconies, shafts, projections and irregular extensions can vary, so record what has been included rather than hiding the assumption.
3. Locate the geometric centre of the chosen footprint. For a simple rectangle, diagonal corner lines meet at the centre. Complex and irregular plans require a more careful method.
4. Mark the North axis using the verified bearing. Keep the compass reference and plan orientation consistent.
5. Place a 360-degree or sixteen-sector overlay at the centre. Align 0 or 360 degrees with the marked North axis.
6. Extend the sector boundaries from the centre toward the outer perimeter. Each room, entrance or placement point can now be located within the relevant sector.
7. Check any point close to a boundary again before drawing a conclusion or selecting a direction-specific product.

16 Vastu zones and degree ranges

The following reference divides 360 degrees into sixteen equal sectors centred on the familiar compass points. Boundary conventions should be documented consistently, especially when a measurement sits exactly on a dividing line.

Worked example: what does a 72-degree reading mean?

Suppose the verified bearing of a reference line is 72 degrees. The East-North-East sector extends from 56.25 degrees to 78.75 degrees, so 72 degrees falls within ENE. The conclusion comes from the numerical range, not from visually guessing that the line looks broadly East-facing.

Now consider a reading of 78.5 degrees. It still falls inside ENE, but it is only 0.25 degrees from the East boundary. A small measurement variation could change the classification. In this situation, repeat the readings and examine possible magnetic interference before treating the zone as settled.

What if the reading falls exactly on a boundary?

A boundary reading should be treated as a verification case, not forced into whichever zone appears more desirable. Repeat the measurement, confirm the North reference, check the accuracy of the floor plan and record the degree range. Where a door, room or remedy genuinely spans two sectors, its centre point, occupied area and the practitioner’s mapping method may all need consideration.

Using a compass in a modern apartment

Apartment buildings contain steel reinforcement, electrical conduits, lifts, metal doors and nearby appliances. It is therefore normal for an indoor magnetic reading to vary from one point to another. The correct response is not to keep moving until a preferred direction appears.

• Take repeat readings at the intended reference point.
• Compare them with a second indoor point aligned to the same wall or axis.
• Check an open balcony, terrace or interference-free outdoor location when safely accessible.
• Compare the result with the approved site plan or survey North arrow if one is available.
• Seek professional mapping when the readings remain inconsistent or the plan is irregular.

Physical compass or mobile compass?

A phone and a physical compass can be used as cross-checks, but agreement between two devices does not automatically prove that the floor-plan overlay is correct. The centre point, footprint and North convention must also be accurate.

About Vastu Mandir’s Professional Vastu Compass

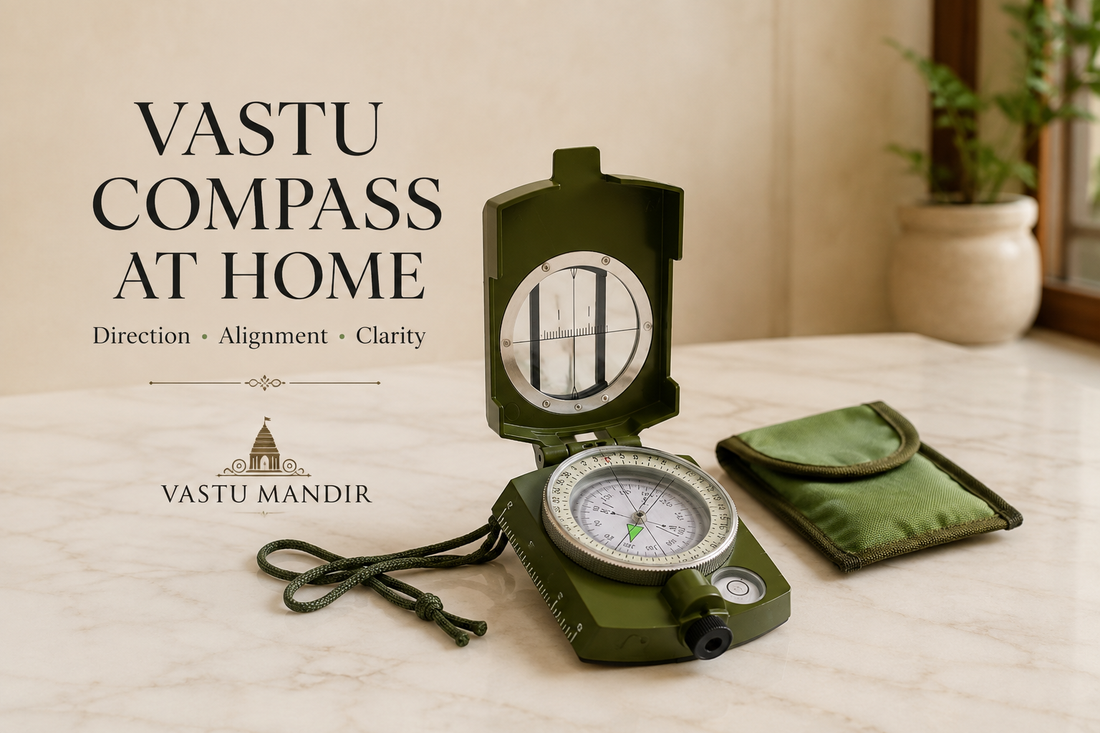

Vastu Mandir’s professional compass is a compact lensatic-style instrument intended for repeatable directional readings at homes, plots and offices. The current listing states a closed size of approximately 8.5 x 6.5 x 3 cm and a weight of approximately 190 to 200 g. Its foldable body, degree-marked dial and sighting components make it suitable for careful directional work when used away from interference.

Explore the Professional Vastu Compass after reviewing the measurement protocol above. Place with clarity, use it patiently and keep a written record of each bearing.

Common mistakes to avoid

• Calling a home East-facing after taking only one approximate reading.
• Holding the compass beside a steel door, electrical panel, lift or large appliance.
• Recording only a direction name and losing the exact degree.
• Using magnetic North for one step and an unverified plan arrow for the next.
• Confusing the direction a door opens with the directional zone in which the entrance is located.
• Forcing an irregular plan into a simple rectangle without documenting the excluded areas.
• Selecting remedies before the directional map has been checked.

How to care for and store the compass

Keep the compass dry, clean and protected in its pouch or case. Avoid storing it beside speakers, magnets, electrical equipment or magnetic clasps. Do not force the folding parts, and allow the needle to settle before every use. If the needle repeatedly sticks, drifts or fails to return consistently in an interference-free location, have the instrument checked before relying on it for mapping.

When professional Vastu mapping is advisable

A careful homeowner can use a compass for preliminary orientation and simple floor-plan mapping. Professional help is advisable when the property is irregular, multi-level, heavily reinforced, close to strong electrical infrastructure or producing contradictory readings. It is also sensible when an entrance or important room lies close to a sector boundary and the decision may influence permanent work or multiple product placements.

The aim is not to make direction finding intimidating. It is to avoid building a detailed Vastu conclusion on an unstable measurement.

Frequently asked questions

What is a Vastu compass used for?

It is used to establish directional bearings that can be transferred to a home, plot or office floor plan. It does not independently diagnose a Vastu imbalance.

Where should I stand to take a Vastu compass reading?

The correct point depends on what is being measured. For plan orientation, use a stable reference that can be transferred accurately to the drawing. For an entrance bearing, use the entrance centreline and record the outward direction. Avoid nearby metal and electrical sources.

Should I take the reading from the main door or the Brahmasthan?

These positions answer different questions. The main door can provide an outward-facing bearing, while the mapped centre is used to project directional sectors across the plan. Do not treat them as interchangeable.

How many compass readings should I take?

Take at least three readings from the same position, then repeat from a nearby point aligned to the same reference. Recheck if the results vary by more than a few degrees.

Why does my compass show different directions inside the house?

Steel reinforcement, electrical wiring, lifts, appliances, speakers, vehicles and magnetic accessories can influence the needle. Compare several carefully controlled readings rather than choosing one result.

Is a mobile compass accurate enough for Vastu?

It can provide a preliminary reference when calibrated and kept away from magnets, but a dedicated physical compass is useful for repeatable readings. Both can be affected by the surrounding environment.

What is the difference between magnetic North and true North?

Magnetic North is the direction shown by a magnetic compass. True North points toward the geographic North Pole. The angle between them is magnetic declination, which changes with location and time.

How many degrees are in each of the 16 Vastu zones?

When 360 degrees are divided equally into sixteen sectors, each sector spans 22.5 degrees.

What should I do if my reading is close to a zone boundary?

Repeat the measurement, check interference, confirm the floor-plan orientation and document the exact degree. Do not force the point into a preferred zone.

Can a compass tell me which Vastu remedy to buy?

No. A compass establishes direction. Product selection should follow careful mapping, the actual condition of the space and considered Vastu guidance.

A clear final principle

Accurate Vastu work begins with a dependable directional reference. Use the compass calmly, verify the reading and transfer it to the plan without changing conventions midway. Once the map is clear, placement decisions can be made with greater faith, care and clarity.
